Stop Designing Route Reflectors Like It's 2005 (Part 1: The Structural Brain)

At 2 AM on a Tuesday, my phone buzzed with a WhatsApp message: "You awake? Do you mind if I call you? I'm in the weeds..."

A friend's Route Reflector (RR) on a transit Provider Edge (PE) router had just starved to death. Keepalives were dropping, prefixes were going dark, and the brain of the network had simply run out of oxygen.

When we autopsy these meltdowns, the easy route is to blame a transient traffic spike or a hardware limitation. But that night reinforced a brutal, hidden truth: a sovereign backbone architecture is rarely dictated by pure technical requirements. It is dictated by your organizational silos.

To move beyond the operational "Safety Plateau," you must recognize the silent killer of modern network design: Org-Chart Architecture a networking twist on Conway's Law where your physical topology becomes a literal mirror of your internal team structure.

If you want true resilience, you must explicitly confront this dynamic and fundamentally rethink what a control plane actually is.

1. The Conductor (And The Math Problem)

Route Reflectors are the conductor of a backbone. Back in the day, I even named mine Karajan. The RR doesn't play an instrument (forward packets) but it ensures every musician (routers) is in sync.

Let's kill a legacy vendor dogma right now: route reflection is a purely compute-bound (CPU/RAM) math problem and not a packet-forwarding problem.

For years, we shoved this function onto the embedded Routing Engine (RE) of a massive hardware router. Why? Because it was politically safe. But legacy BGP daemons are notoriously single-threaded.

I didn't read this in a vendor whitepaper; I lived it in the trenches. In a previous global footprint running a massive underlay of nearly 200 devices and heavy-iron cores the performance delta wasn't theoretical. I've watched a legacy hardware router's RE choke for agonizing minutes trying to process a massive BGP churn event. Meanwhile, a tuned x86 vRR executing parallelized RIB sharding chewed through the exact same state in seconds.

A modern multi-core AMD EPYC server doesn't just edge out an expensive router's embedded RE when churning through an O(N) wave of prefix withdrawals it absolutely obliterates it.

2. Org-Chart Architecture & The Talent Schism

If x86 compute is mathematically superior, why are some carriers or enterprise edge environments still littered with dedicated hardware routers acting as RRs?

It's not because of rack depth or NEBS compliance. It is Org-Chart Architecture in action.

When a DIMM blows at 3 AM out in a dusty telco Point-of-Presence (PoP), frontline remote-hands technicians know how to console in and RMA a router line-card. They generally do not know how to troubleshoot a raw Linux kernel panic via an IPMI interface (and i don't).

Furthermore, your internal boundaries dictate that NetOps automation pipelines are tuned for Junos or IOS-XR. The Sysdmins who know how to manage distributed linux fleets? They aren't allowed to touch the backbone underlay.

The Pragmatic Compromise: Because your org chart won't let Sysadmins manage edge compute battle-scarred architects are forced to deploy dedicated mid-range hardware routers purely as edge RRs. You aren't buying them for the merchant silicon; you are paying a massive hardware tax just to appease the NetOps silo. If organizational gravity forces you into this compromise, accept that you are buying a functionally weak skull for a massive brain and you must structurally isolate it.

3. The OOP Mandate: Decoupling Brain from Muscle

Whether you win the x86 battle or Org-Chart Architecture forces you into a router appliance, the golden rule remains absolute: The Conductor must be Out-Of-Path (OOP).

The instinctive response is: "I have CoPP. My BGP keepalives are prioritized." And you're right Control Plane Policing exists precisely to shield the Routing Engine from data-plane garbage. But CoPP solves only one failure mode. Co-locating the RR on a transit router creates a far more dangerous problem: unnecessary fate-sharing.

The Convergence Storm: During a major topology event like a dual fiber cut, a DDoS-triggered upstream shift the transit PE's Routing Engine faces a simultaneous triple load: IGP reconvergence for transit, PFE next-hop reprogramming and full-table RR reflection for every client in the cluster. CoPP doesn't help here because the enemy is already inside the gates it's your own legitimate control-plane workload fighting itself for CPU cycles on a single RE.

The Maintenance Tax: Every software upgrade, every line-card RMA, every NSR switchover on the transit chassis kills the RR function as collateral damage. You've turned routine maintenance into a control-plane event for the entire cluster.

Route Reflectors exist solely to maintain the RIB and reflect updates. Their availability must never depend on the operational health of a transit forwarding path. When the brain and the muscle share a chassis, a problem in either one becomes a problem in both.

4. Total Obscurity: The RR as a Private Coordination Layer

Your RRs should never be exposed to the outside world. They are a private coordination layer, not a public utility.

True security here isn't an ACL bolted onto a public-facing loopback it's structural. Wrap your RR infrastructure in private IP space (RFC 1918/6598) anchored within the underlay . An external attacker can flood your public service VIPs all day but they cannot route a single packet toward your routing brains because the address space simply doesn't exist in the global table.

This is the difference between locking a door and removing the door from the building entirely.

5. The Topology Trap: Accidental Transit

Simply moving the RR off the main physical line isn't enough; you must rigorously audit your Traffic Gravity.

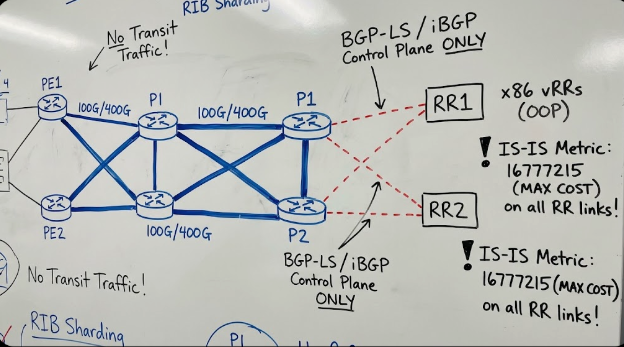

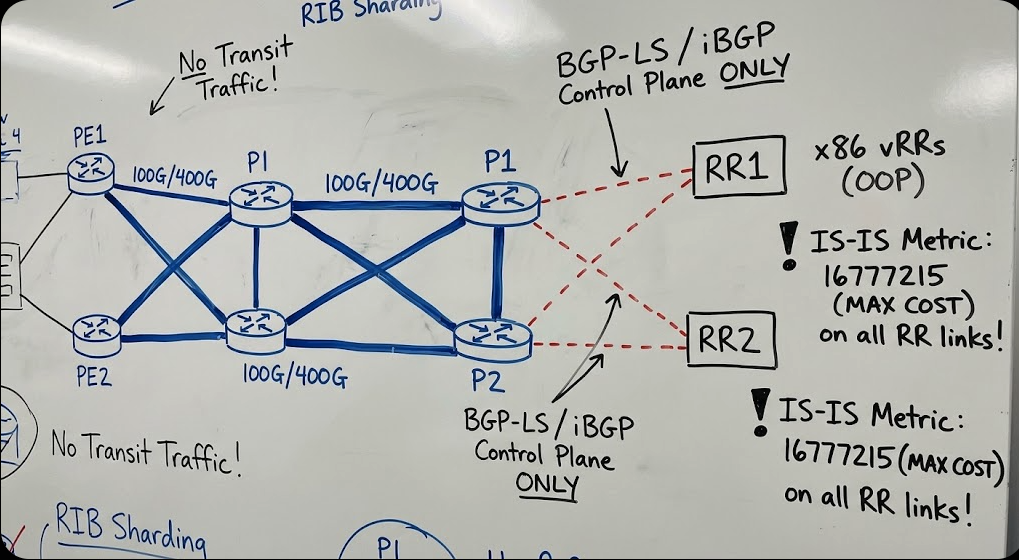

RRs are typically dual-homed to the core for redundancy. If you do not explicitly engineer your IGP metrics, the RR can accidentally become a transit node during a backbone failure. I have watched entire networks melt down because a 400G fiber cut occurred, and the SPF calculation decided the new "shortest path" was straight through the Route Reflector's management or stub interfaces.

That low-forwarding "brain" will be instantly vaporized by a tidal wave of transit traffic. You must definitively orchestrate your metrics by configuring the absolute maximum link cost or setting the IS-IS Overload (OL) bit / OSPF max-metric on all RR-facing interfaces. This guarantees the node remains a topological dead-end for data-plane traffic.

(Escaping Org-Chart Architecture is only half the battle. In Part 2, we shift gears into Routing Optimization exploring how Add-Path, Optimal Route Reflection (ORR), and BGP PIC interact with this foundational architecture to dictate your actual convergence behavior.)
